ENHANCING BIODIVERSITY IN THE ATLANTIC AREA THROUGH SUSTAINABLE ARTIFICIAL REEFS

TED2021-129532B-I00

Funded by MICIU/AEI/10.13039/501100011033 and the European Union Next Generation EU/PRTR

EBASAR PROJECT

Artificial Reef Manufacturing Techniques

The GENERAL GOAL of the project is to assess 3 different techniques of fabrication of artificial reefs: direct 3D printing with mortar; fabrication of formworks by 3D printing; use of gabions.

Three different criteria will be used in the comparison: cost, environmenttal impact and biorreceptivity

The SPECIFIC OBJECTIVES of the project are the following:

  • Development of artificial reefs by the fabrication of a formwork 3D printed.
  • Development of artificial reefs carried out by gabions.
  • Biological monitoring of artificial reefs.
  • Economic and environmental assessment of the new artificial reefs.
  • Dissemination of results and knowledge transfer.

BUDGET

130.870,00€

WORKDAYS

RESEARCH TEAM

Multidisciplinary

Prof. Group of Applied Research Technology of Construction (GITECO).

Responsible of the design and construction of new artificial reefs.

elena.blanco@unican.es

Full Professor. IHCantabria

Responsible of the biological monitoring of the new artificial reefs.

araceli.puente@unican.es

DR. LAURA CASTAÑÓN JANO (UC)

Assistant Prof. Area of Manufacturing Processes.

Responsible of the development of formworks fabricated by 3D.


DR. XABIER GUINDA SALSAMENDI (IHCantabria)

Researcher. IHCantabria

Responsible of the scientific diving

PARTNERS

EBASAR projects

18/11/2024

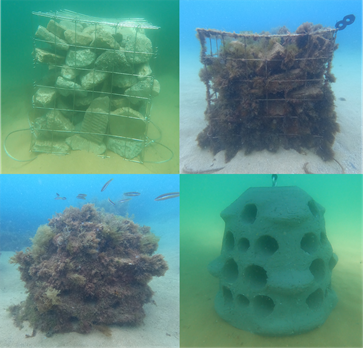

SECOND ASSESSMENT OF THE COLONISATION OF THE ARTIFICIAL REEFS

Second assessment of the colonisation of the artificial reefs after seven months of their installation. The reefs are covered by biotic communities more developed and attract mobile species that find shelter in them, building artificial habitats with great biodiversity. As a counterpart, some of the reef models tested are intensively colonised by the invasive algae Rugulopteryx okamurae.

15/07/2024

FIRST ASSESSMENT OF THE COLONISATION OF THE ARTIFICIAL REEFS

First assessment of the colonisation of the artificial reefs after two and a half months of their installation. The reefs are covered by pioneer flora and fauna species, while in the contiguous rocky bottoms the massive presence of the invasive algae Rugulopteryx okamurae is detected for the first time in Cantabria.

30/04/2024

ARTIFICIAL REEFS IMMERSED IN SANTANDER

Eight artificial reefs have been submerged in the Bay of Santander, between Isla de la Torre and Isla de la Horadada. Four of them are concrete pieces using a 3D printed formwork, and another four are gabions with CDW.

25/03/2024

ARTIFICIAL REEFS MADE USING GABIONS

The manufacture of 4 artificial reefs using gabions has been completed. Stainless steel wire has been used for the gabion cage. Two of the gabions have been filled with concrete from CDW, and another two with ceramic from CDW.

30/01/2024

FIRST REEFS FABRICATED USING A MOULD 3D PRINTED

Two of a total of four expected reefs have been fabricated for the project. These two reefs have been manufactured with a low carbon print binding, employing a cement of low Clinker content (only 16%) and flying ashes. The aggregate is natural limestone 0-3mm. A biodegradable release agent composed of starch and gelatine has been employed.

15/12/2023

MOULD FABRICATED BY 3D PRINTING

A mould has been fabricated with PLA that will be used as a framework to build artificial reefs. The company LowPoly has collaborated in the fabrication.

25/05/2023

PRELIMINARY DESIGN OF THE FORMWORK THAT WILL BE FABRICATED BY 3D PRINTING

The development of the formwork to be 3D printed in plastic has started for the fabrication of the concrete artificial reefs. The design is based in one of the patterns of the project 3DPare.

08/05/2023

IMMERSION OF SPECIMENS OF MORTAR AND STONY MATERIALS IN THE SANTANDER BAY

In order to determine what materials are going to be employed to fabricate artificial reefs built by a plastic formwork printed in 3D two new mortars have been developed using a Portland cement of low CO2 emissions and a geopolimer.
